• 外壳材质：不锈钢

• 外形尺寸（长*宽* 高）： 284mm x 130mm x 150mm

• 环境温度范围：-20℃~+70℃

• 重量 : 6.2 kg

• 输入电压 :DC 12V

• 最大输出功率: 0.8W

• 最大电流：Ii=2.0A

• 功能：收集数据并通过接口分别传输到井下中央计算机和地面，参数设定，并能显示故障

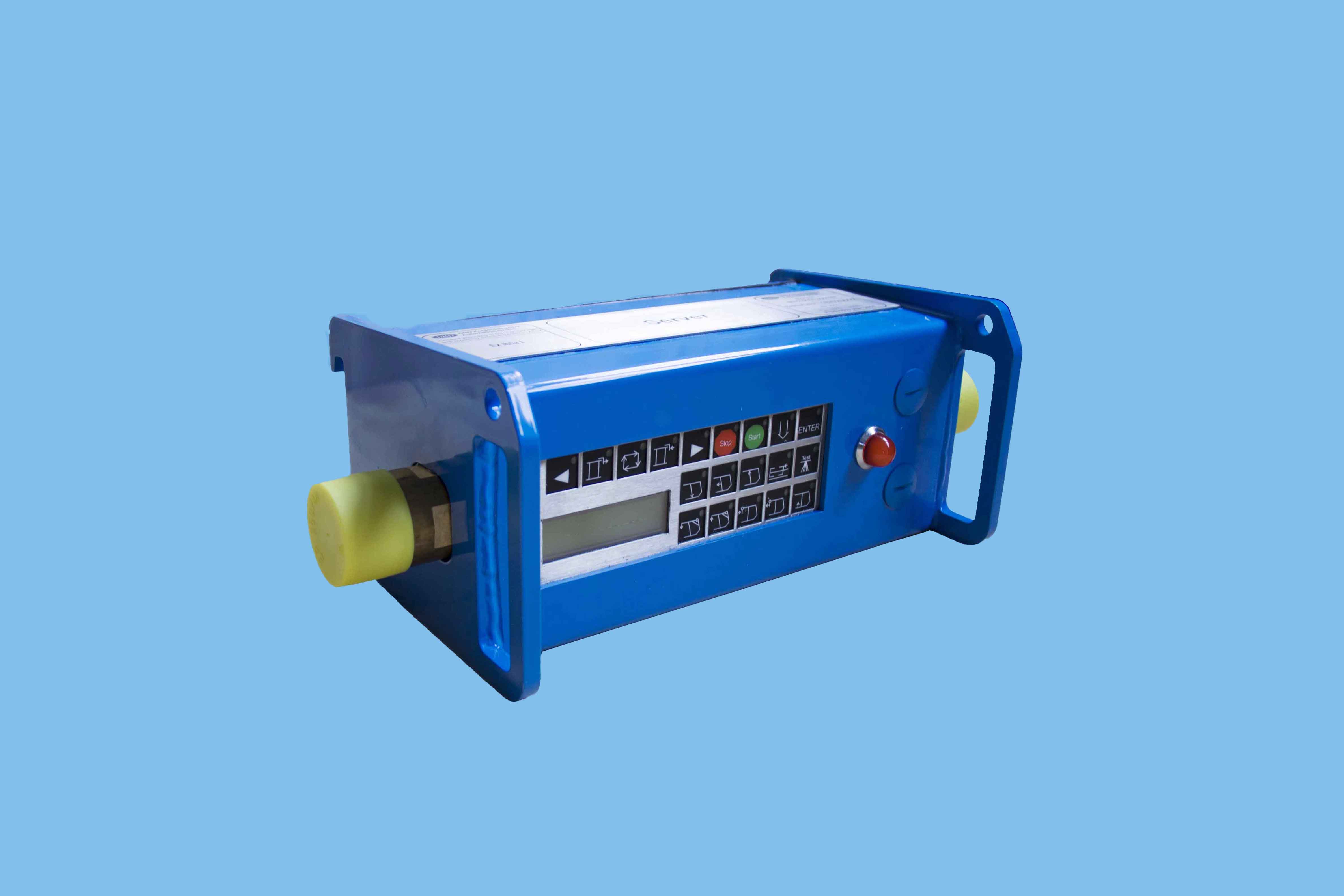

• Case: stainless steel

• Size (L * W * H) : 284mm x 130mm x 150mm

• Ambient Temperature Range: -20℃~+70℃

• Weight: 6.2kg

• Input voltage :DC 12V

• Maximum power output: 0.8W

• Maximum current: Ii =2.0A

• Functions: collect data and transmit it to the underground central computer and the ground respectively through the interface, set parameters and display the fault
